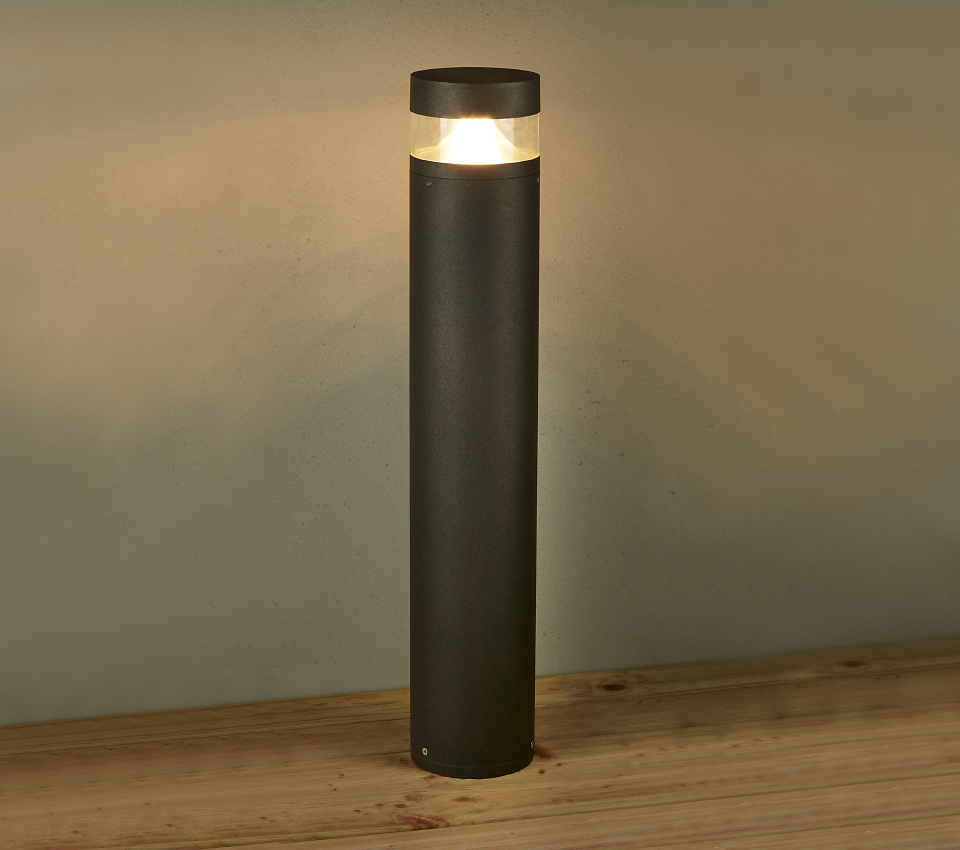

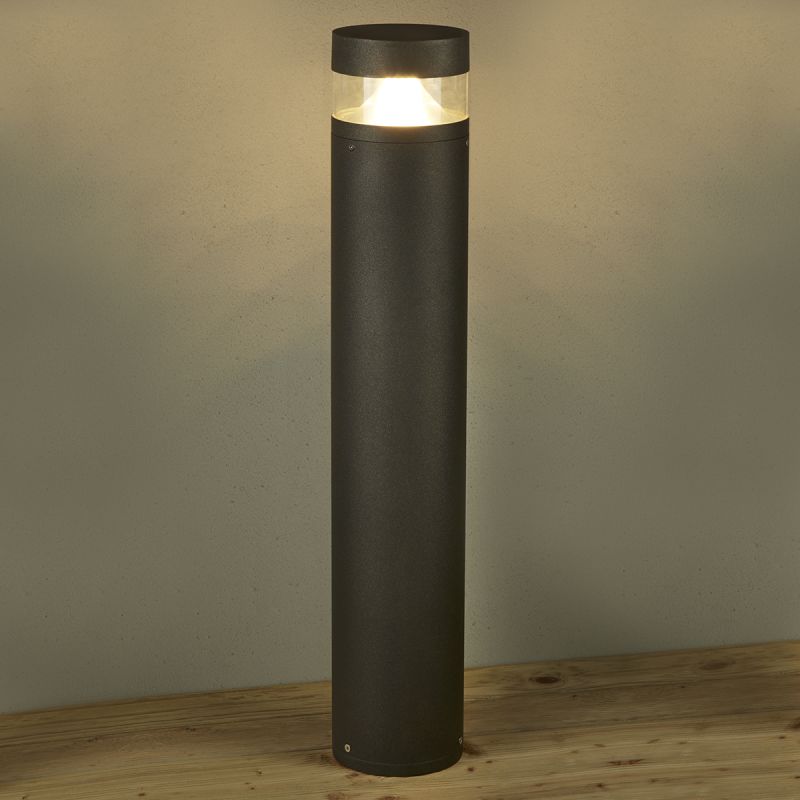

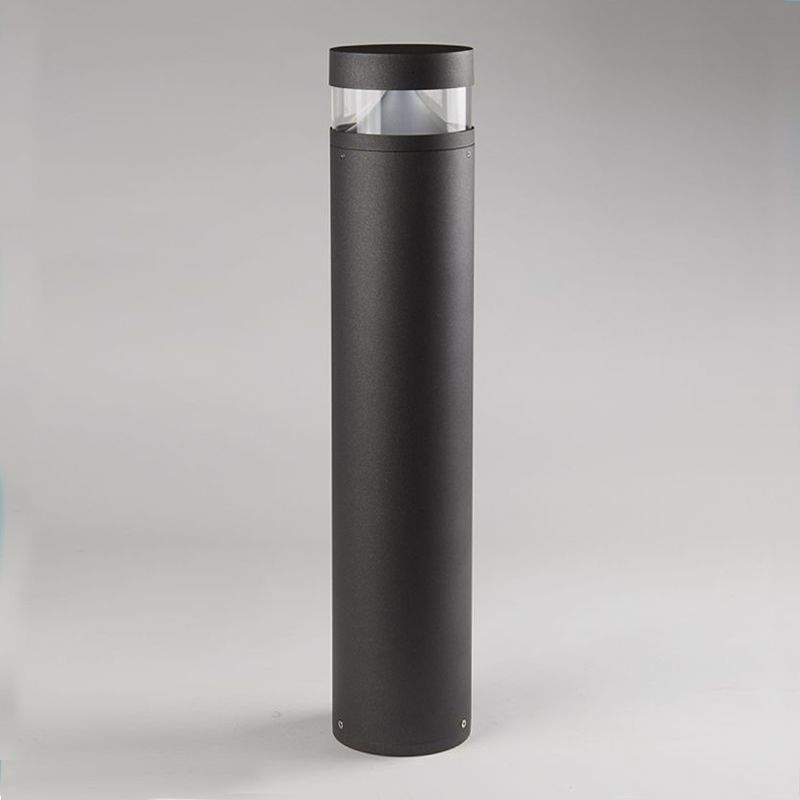

Sanderson 80, Graphite
Sanderson 80, Graphite
Sanderson 80, Graphite

Sanderson 80, Graphite

Class 1
Class 1
IP44
IP44

product variants

Key features

Tech spec

Downloads

  • Die cast aluminium with a graphite finish
  • Polycarb diffuser
product codeOD-SAN80-G
descriptionSanderson 800mm Bollard, 8W 3000k, IP44, Graphite
nameSanderson 80, Graphite
item
finishGraphite
main materialAluminium
overall dimensionsh.800 x dia.145mm
applicationOutdoor
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP44
bathroom zonesn/a
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceOsram LED
lumen output (lm)700
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °360
efficacy (lm/w)88
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)8
input power220-240V 50/60Hz
driver included?Yes
power factor0.9
switchn/a
dimmableNo
dimming methodn/a
class1 (Earthed)
cable length (mm)n/a
additional information

Sanderson

Sanderson is the all round bollard IP44 solution. With traditional  cylindrical shape and standing 80 cm high, Sanderson provides 360 degrees of illumination. Constructed from pure aluminium, and finished in an attractive sparkling graphite paint, Sanderson's applications include walkways, path lighting, exit route lighting, and general outdoor illumination. Choose Dorchester for a more decorative bollard, or look at our Grosvenor ranges for an asymmetric or two way bollard lighting option.

Sanderson
