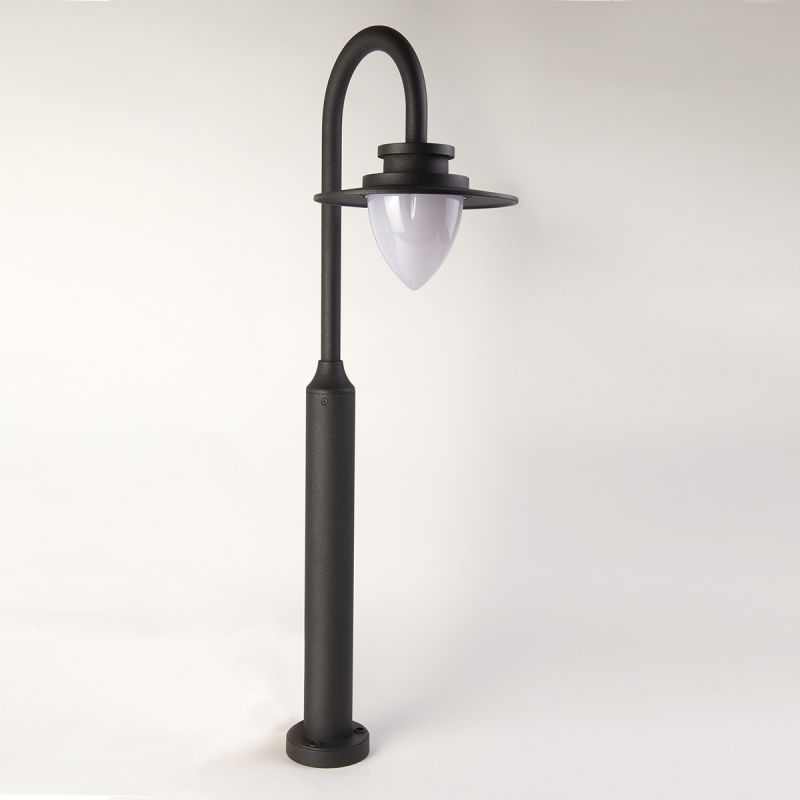

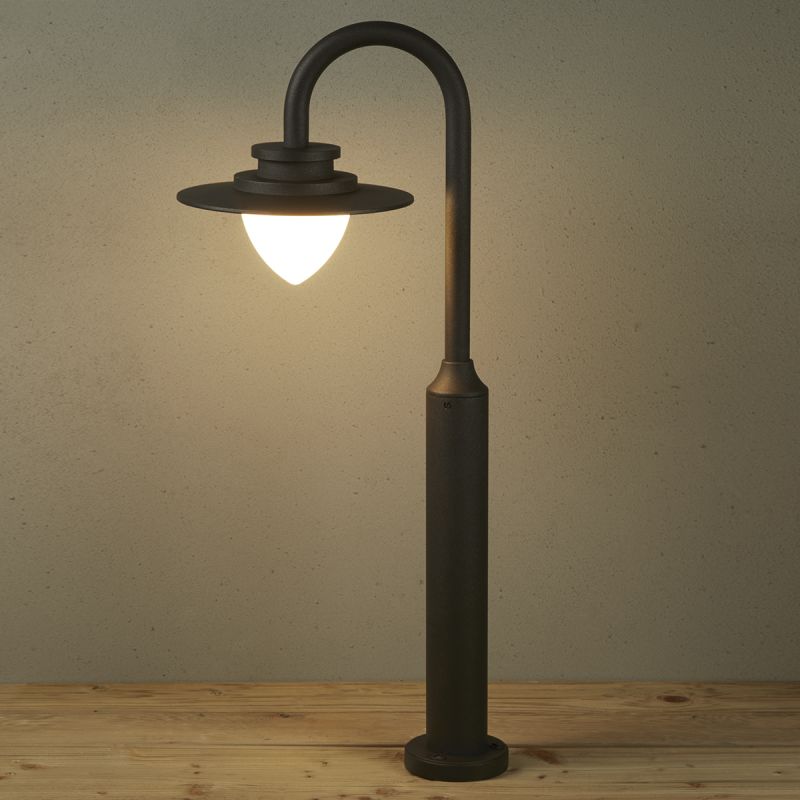

Dorchester Bollard Graphite
Dorchester Bollard Graphite
Dorchester Bollard Graphite

Dorchester Bollard Graphite

Class 1
Class 1
IP54
IP54

product variants

Key features

Tech spec

Downloads

  • Die cast aluminium with a graphite finish
  • Opal polycarb diffuser
  • Floor mounted
product codeOD-DORB80-G
descriptionDorchester 80cm 8W 3000k Bollard Graphite
nameDorchester Bollard Graphite
item
finishGraphite
main materialAluminium
overall dimensionsh.800 x base dia.110 x w.240 x p.340mm
applicationOutdoor
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP54
bathroom zonesn/a
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceCREE COB
lumen output (lm)580
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °180
efficacy (lm/w)73
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)8
input power220-240V 50/60Hz
driver included?Yes
power factor0.9
switchn/a
dimmableNo
dimming methodn/a
class1 (Earthed)
cable length (mm)n/a
additional information

Dorchester bollard

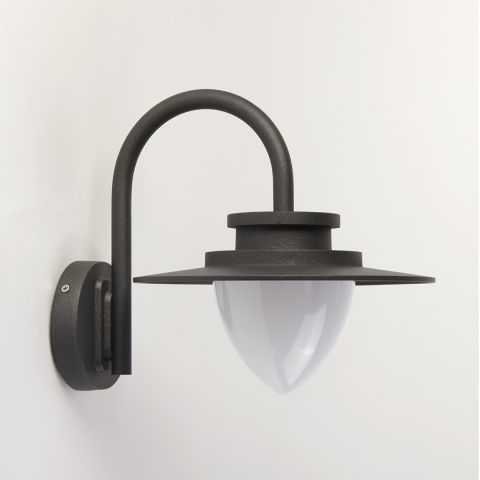

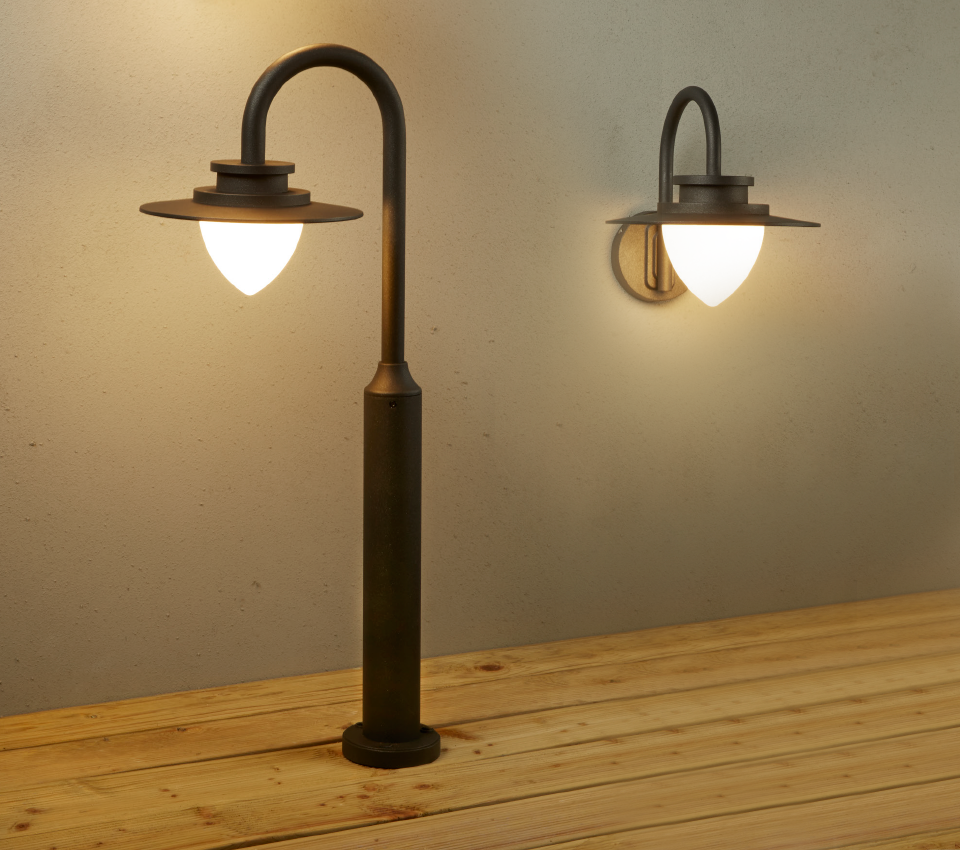

The Dorchester family is our contemporary take on the traditional lantern. Dorchester Wall light complements Dorchester Bollard, and whilst designed for residential applications have been used is commercial settings including care homes and restaurant outdoor seating areas. Constructed from pure aluminium and finished in a smart Graphite finish choose, you can see Dorchester featured in on our projects page.

Dorchester Bollard
