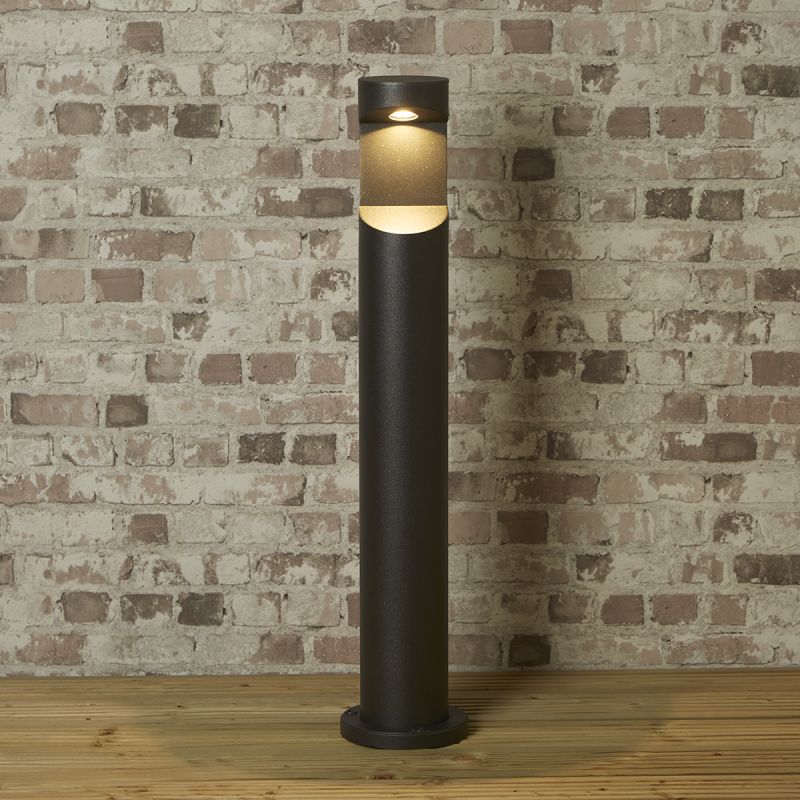

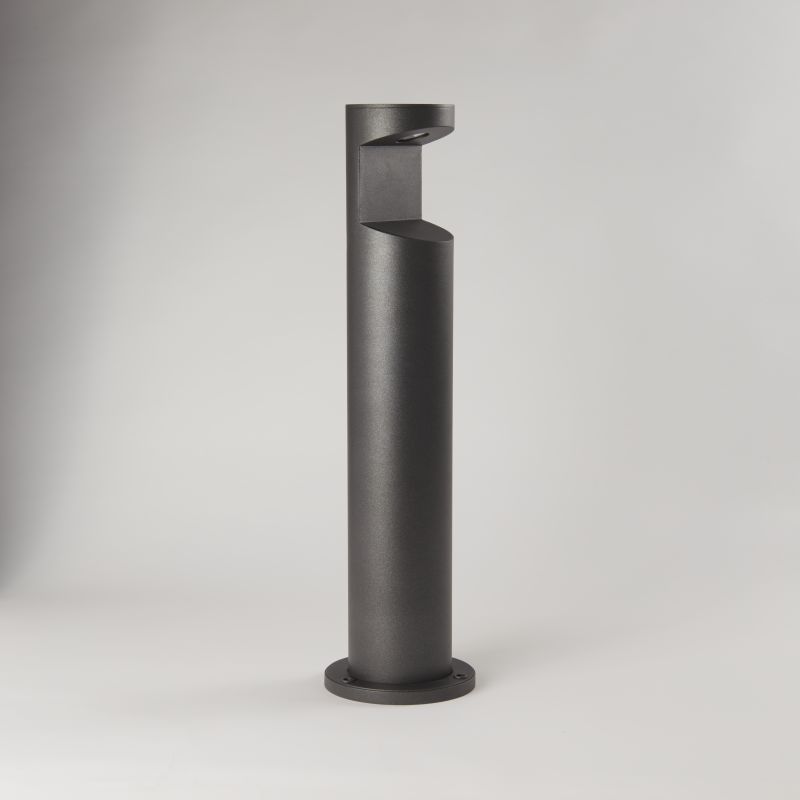

Grosvenor 80, Graphite
Grosvenor 80, Graphite
Grosvenor 80, Graphite
Grosvenor 80, Graphite

Grosvenor 80, Graphite

Class 1
Class 1
IP54
IP54

Key features

Tech spec

Downloads

  • Die cast aluminium with a graphite finish
product codeOD-GRO80-G
descriptionGrosvenor 800mm Bollard, CREE COB 8W LED 3000k, IP54, Graphite
nameGrosvenor 80, Graphite
item
finishGraphite
main materialAluminium
overall dimensionsh.800 x d.108mm
applicationOutdoor
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP54
bathroom zonesn/a
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceCREE COB
lumen output (lm)600
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °n/a
efficacy (lm/w)75
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)8
input power220-240V 50/60Hz
driver included?Yes
power factor0.9
switchn/a
dimmableNo
dimming methodn/a
class1 (Earthed)
cable length (mm)n/a
additional information
Base diameter 158mm

Download LDT File

Grosvenor I

Grosvenor I is an asymmetric high powered 8W LED bollard constructed from pure aluminium. Available in 80 cm and 30 cm heights, and in a robust Graphite painted finish. Guide people downs paths and walkways with this elegant, slimline uni-directional post light, which is angled to put the light onto the ground on one side. Use the 30 cm version for narrow paths and more localised lighting.  Choose Grosvenor II for a bi-directional version.
