  • 90° Beam Angle
  • Die cast aluminium with a graphite finish
product codeOD-CON-G
descriptionConnaught Up Down Wall Light, 2 x 6W CREE COB LED 3000k, IP65, Graphite
nameConnaught
item
finishGraphite
main materialAluminium
overall dimensionsh.220 x w.90 x p.132mm
applicationOutdoor wall
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP65
bathroom zonesn/a
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceCree COB
lumen output (lm)910
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °90
efficacy (lm/w)76
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)12
input power220-240V 50/60Hz
driver included?Yes
power factor0.95
switchn/a
dimmableNo
dimming methodn/a
class1 (Earthed)
cable length (mm)n/a
additional information

Download LDT File

Connaught

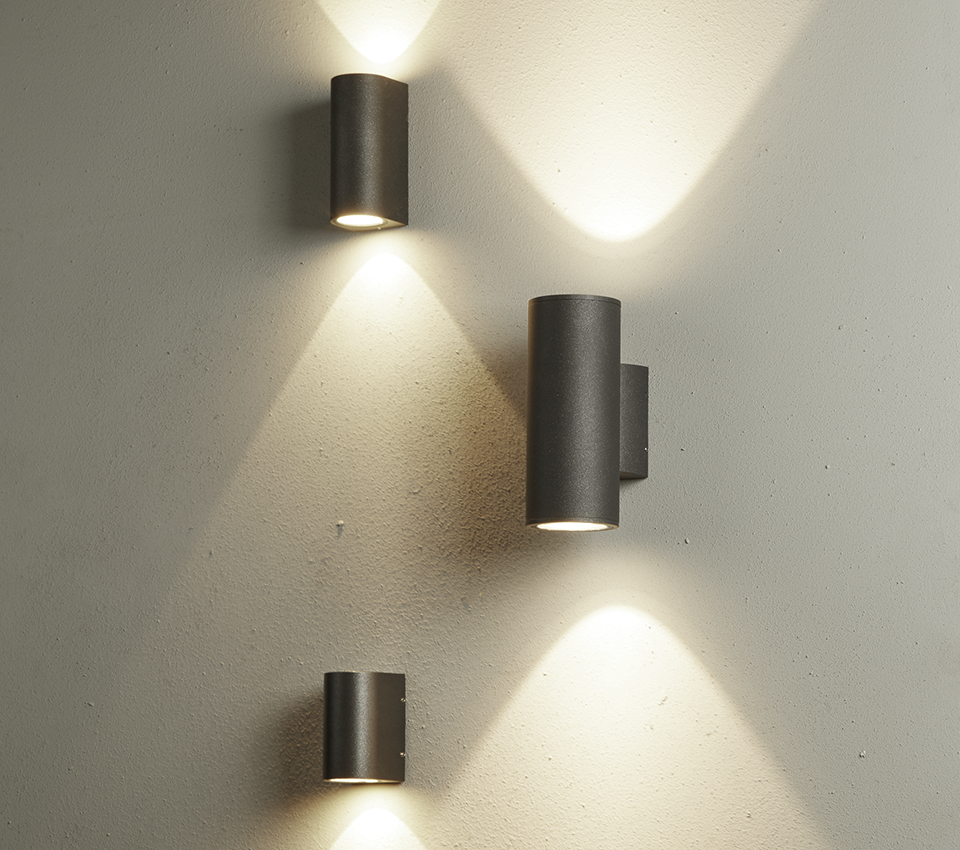

Connaught is a popular wall light that adds interest to commercial and residential exteriors alike. Constructed from pure aluminium and finished in a robust Graphite paint Connaught is a

timeless addition for outdoor dining, pedestrian areas, patios and pergolas alike.
