Sapporo Square
Sapporo Square
Sapporo Square
Sapporo Square

Sapporo Square

Class 2
Class 2
IP65
IP65

product variants

Key features

Tech spec

Downloads

  • Corrosion resistant
  • Vandal resistant materials
  • Surface mounted
  • PC-ABS material

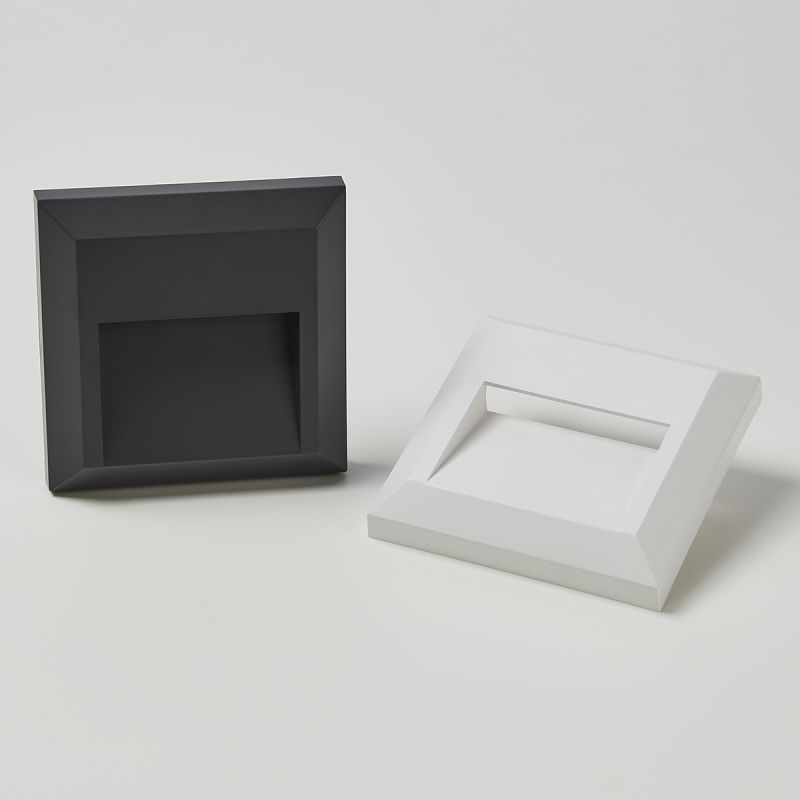

  • Dark grey and white interchangeable covers supplied in the box
product codeOD-SAPS-GW
descriptionSapporo Square, IP65 125mm SMD LED 1.1W 3000K Dark Grey or White
nameSapporo Square
item
finishDark Grey or White
main materialPC ABS
overall dimensionsh.125 x w.125 x p27mm
applicationOutdoor Wall
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP65
bathroom zones1 & 2
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceSMD LED
lumen output (lm)45
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °n/a
efficacy (lm/w)41
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)1.1
input power220-240V 50/60Hz
driver included?Yes
power factorn/a
switchn/a
dimmableNo
dimming methodn/a
class2 (Double Insulated)
cable length (mm)n/a
additional information
Suitable for use in a coastal environment

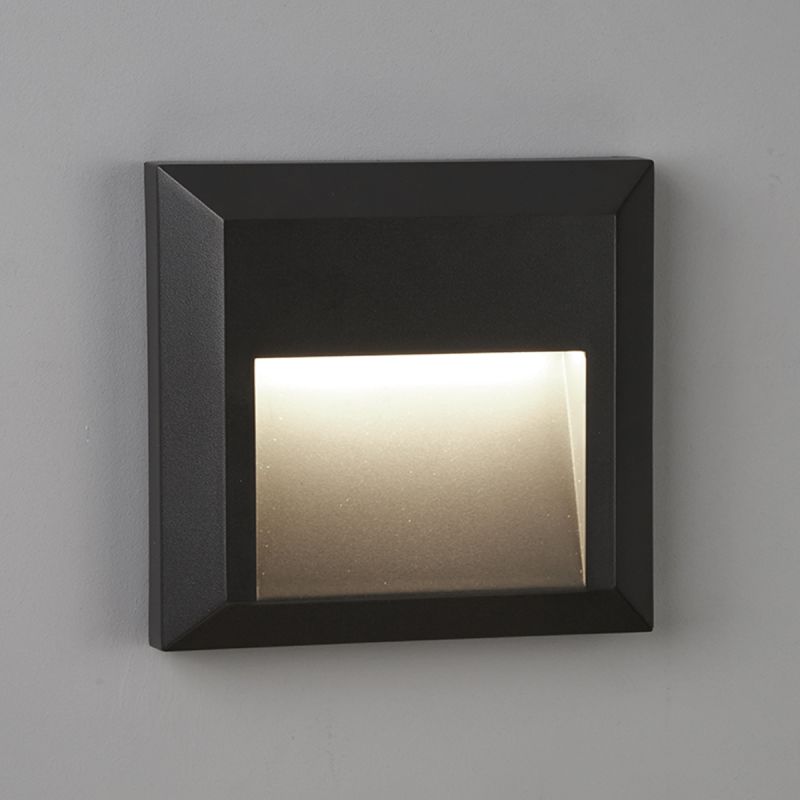

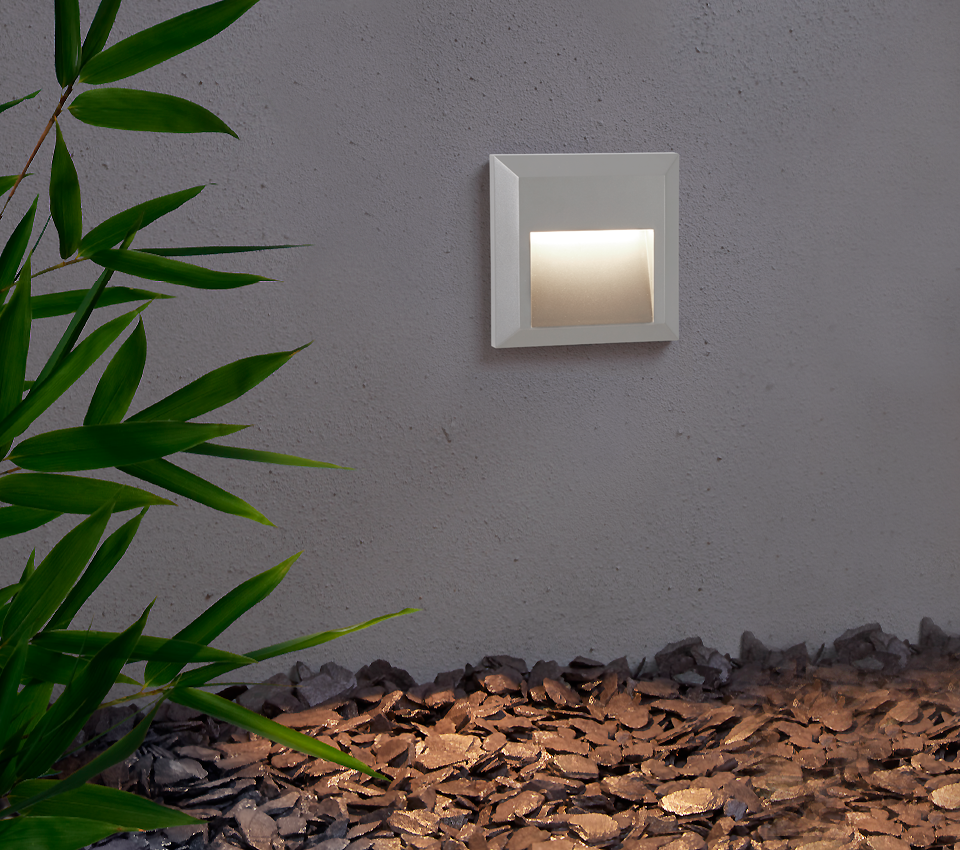

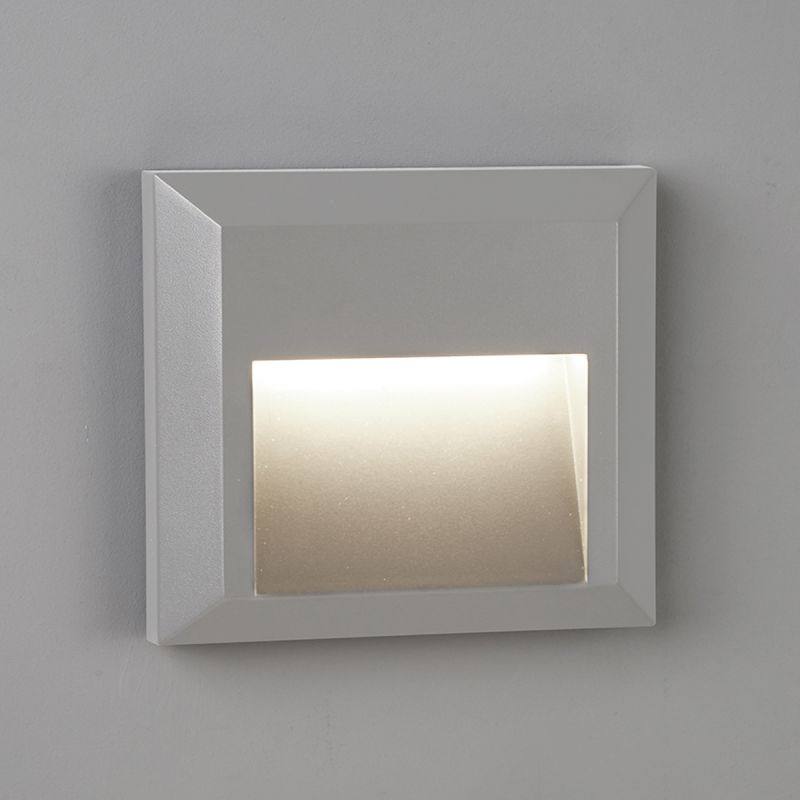

Sapporo Square

Sapporo Square is a surface mounted marker light that emits light from the front. Conveniently, a dark grey and white cover are included in the box, so you can choose which finish you prefer. For alternative surface mounted marker lights look at Sapporo Long and Suzuka. Part of our ever popular coastal range, constructed from a combination of PC and ABS plastics providing a crisply designed weatherproof lighting solution suitable for coastal locations.
