  • Corrosion resistant
  • Vandal resistant materials
  • Dark grey PC-ABS with opal polycarb diffuser
product codeOD-YOK
descriptionYokohama, IP54 200mm, SMD LED, 6W 3000K, Dark Grey
nameYokahama
item
finishDark Grey
main materialPC ABS
overall dimensionsh.115 x w.220 x p.51mm
applicationOutdoor Ceiling / Wall
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP54
bathroom zones2
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceSMD LED
lumen output (lm)320
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °n/a
efficacy (lm/w)53
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)6
input power220-240V 50/60Hz
driver included?Yes
power factor0.4
switchn/a
dimmableNo
dimming methodn/a
class2 (Double Insulated)
cable length (mm)n/a
additional information
Suitable for use in a coastal environment

Download LDT File

Yokohama

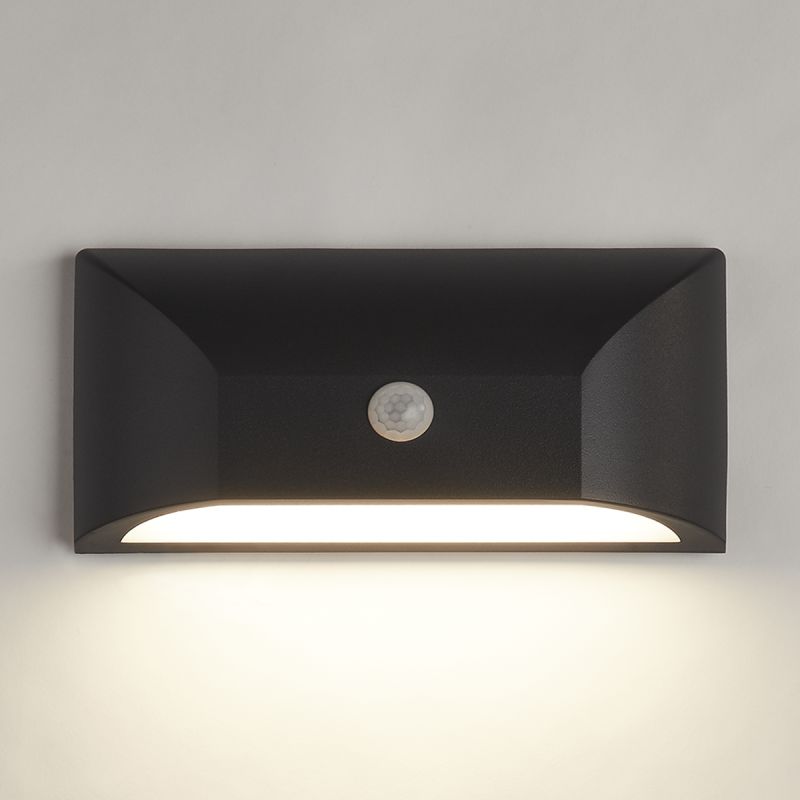

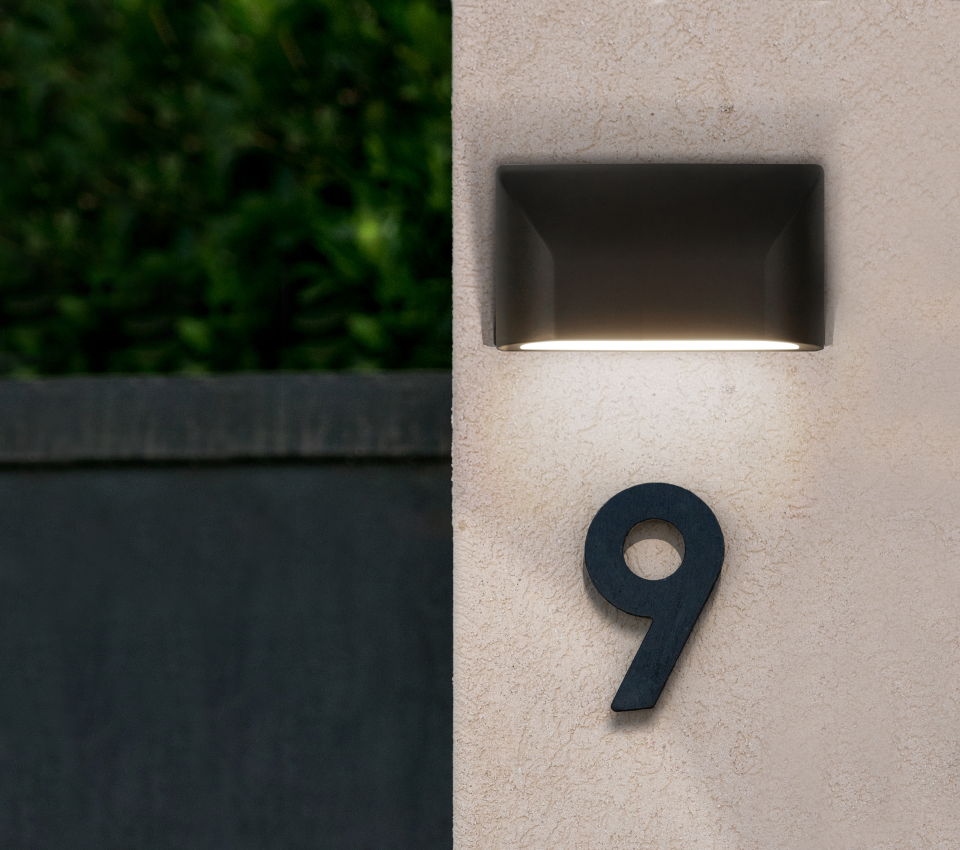

Part of our ever popular coastal range, Yokohama is a dedicated downward lighting solution. Designed for applications including over external doors, lighting signage and house numbers and walkways. Yokohama ensures that light stays close to the application and does not dissipate into the wider area. Yokohama is also available with a handy PIR sensor. Constructed from a combination of PC and ABS plastics providing a crisply designed weatherproof lighting solution suitable for coastal locations.

Yokohama
