Key features

Tech spec

Downloads

  • Dimmable
  • Bathroom zones 1&2
  • Walkover upto 320kg
  • Satin stainless steel 316 cover with aluminium body
  • 15° beam angle
  • Fittings must be wired in series
  • Driver supplied separately
product codeIPR-PADRSS15
descriptionPaddington Round, SS316, IP67 CREE XPE 350mA, 15° Beam, 1W, 3000k, driver excl.
namePaddington Round 15°
item
finishGrade 316 Satin Stainless Steel
main materialAluminium
overall dimensionsdia.28 x h.44mm
applicationOutdoor Recessed
cut out21mm
recess depth mm56
fire ratedNo
ip ratingIP67
bathroom zones1 & 2
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceCREE XPE
lumen output (lm)90
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °15
efficacy (lm/w)90
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)1
input power350mA
driver included?No
power factorn/a
switchn/a
dimmableYes
dimming methodWhen used with a dimmable driver
class3 (Low Voltage)
cable length (mm)600
additional information
Must be wired in series, Driver supplied separately
Installation tube included

Download LDT File

Paddington

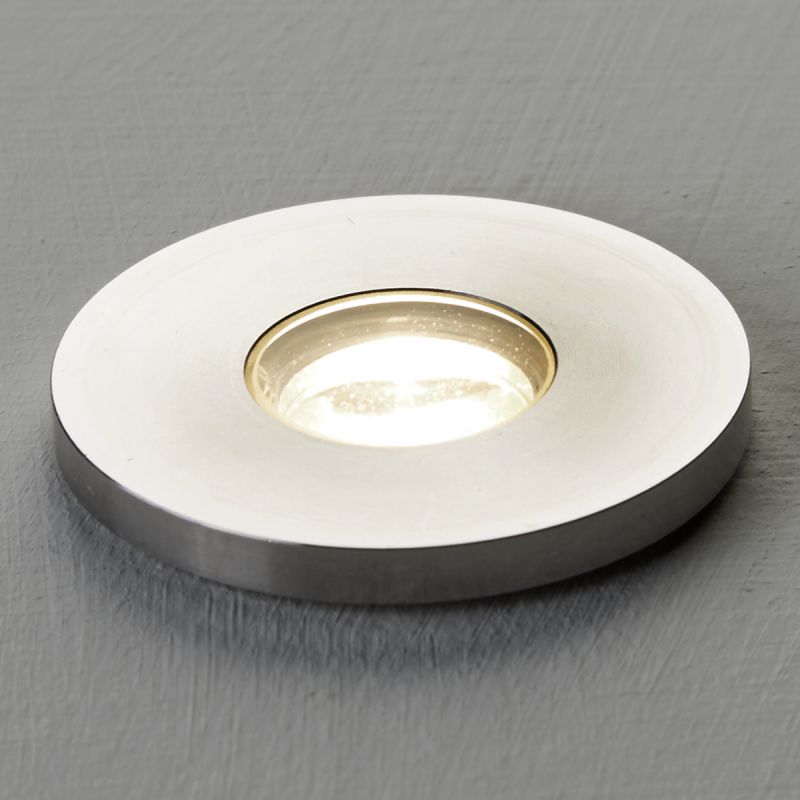

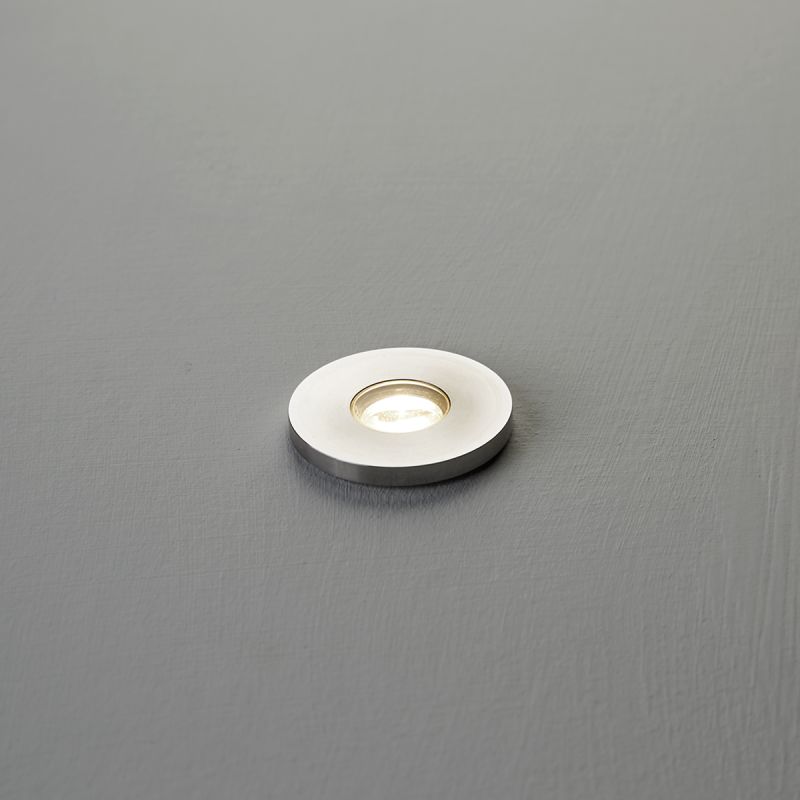

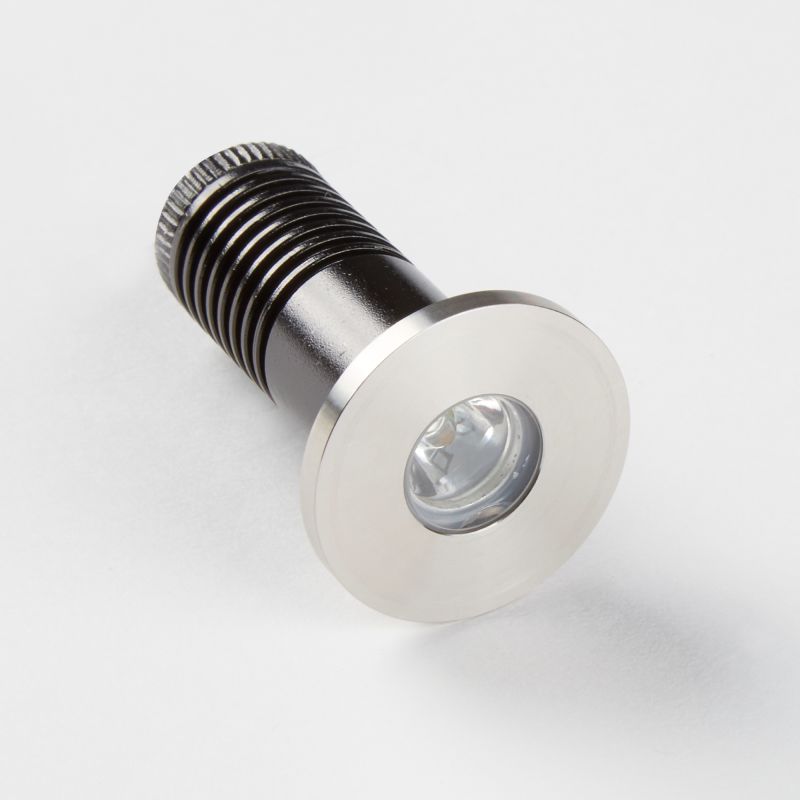

Paddington is a family of round and square IP67 recessed ground lights. With Grade 316 stainless steel cover and passivated aluminium body this is a high quality 1W CREE LED solution. Available in either 15 degree or 30 degree versions. For larger option choose Piccadilly. Paddington is a 350mA item, which must be wired in series and requires a separate driver. For guidance see our guide to constant current led items in Help and Advice.
