Diana
Diana
Diana
Diana

Diana

IP44
IP44
Dimmable
Dimmable
Class 3
Class 3
350mA
350mA

product variants

Key features

Tech spec

Downloads

  • Dimmable
  • Bathroom zone 2
  • Recessed
  • 30° beam angle
  • Die cast body with a sand white finish

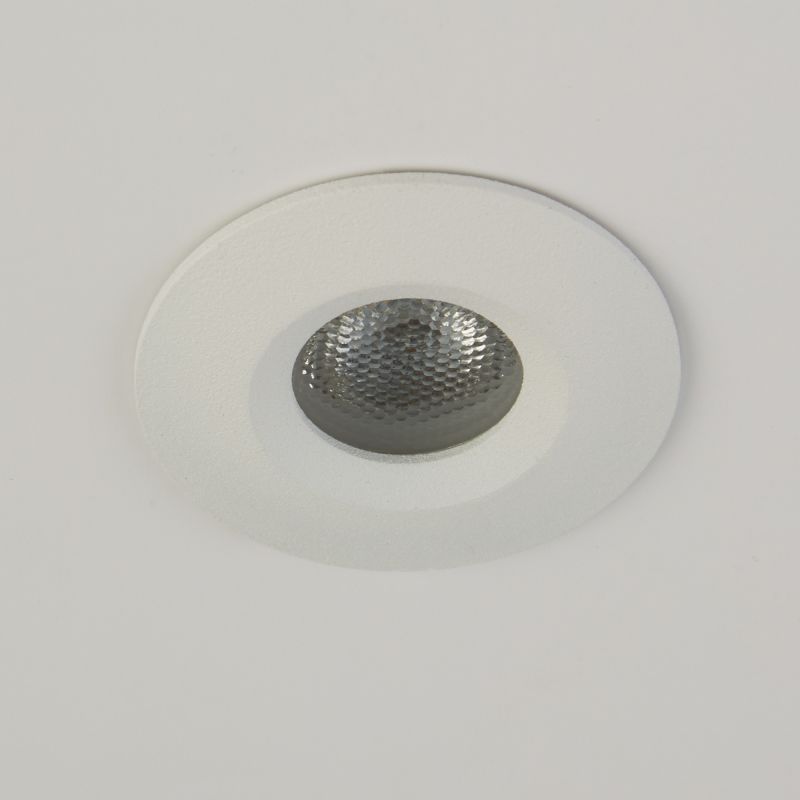

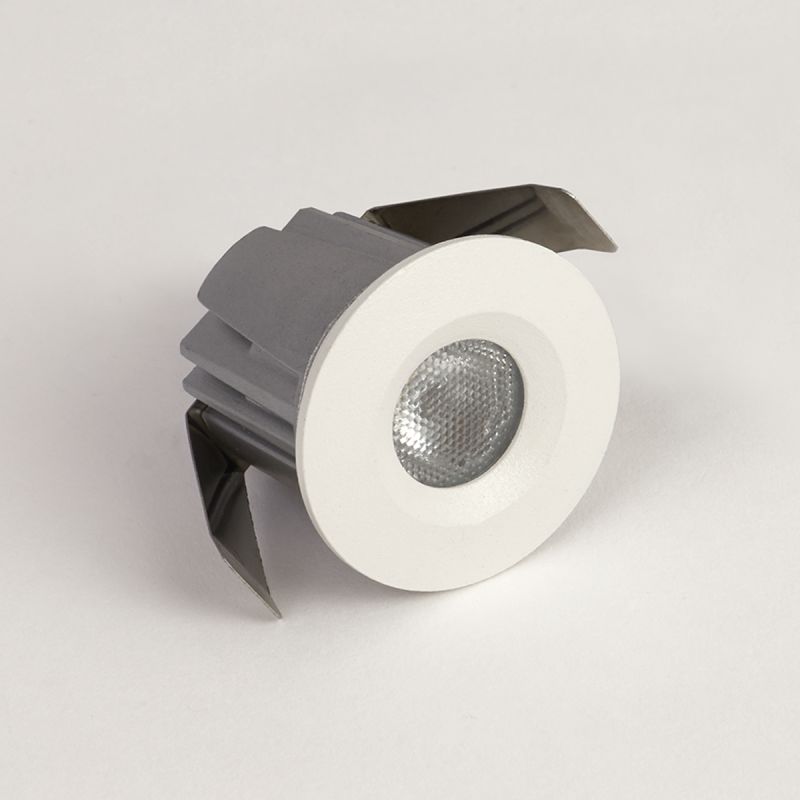

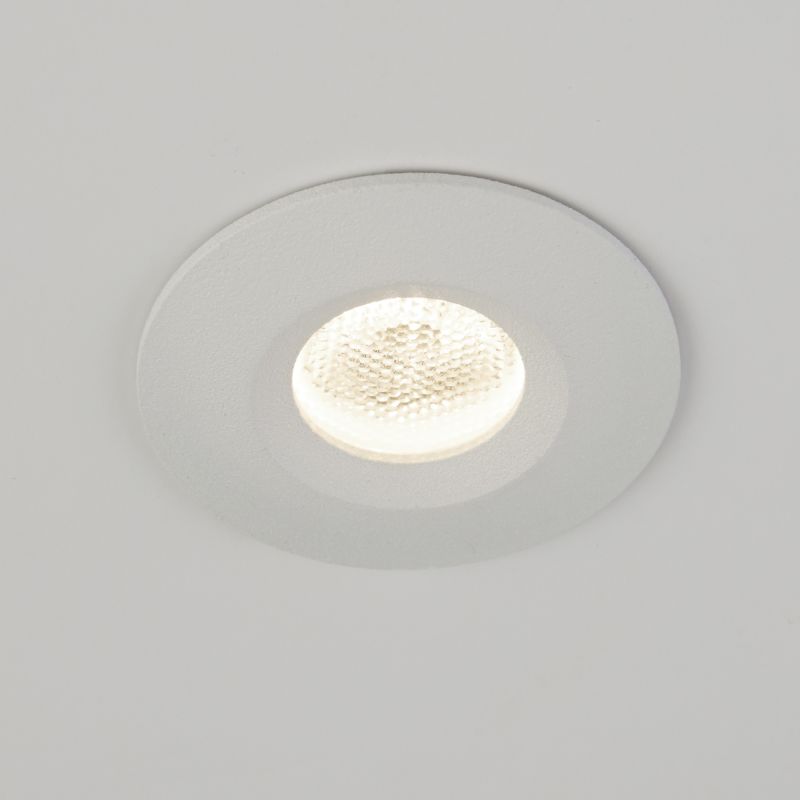

product codeDL-DIA-W
descriptionDiana 1W 350mA 3000k LED Micro Spotlight, IP44, Sand White
nameDiana
item
finishSand White
main materialAluminium
overall dimensionsdia.46 x d.36mm
applicationRecessed
cut out38mm
recess depth mm36
fire ratedNo
ip ratingIP44
bathroom zones2
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)120
nett weight (kg)n/a
light
light sourceCREE XPE
lumen output (lm)n/a
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °30°
efficacy (lm/w)n/a
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)1
input power350 mA
driver included?No
power factorn/a
switchn/a
dimmableYes
dimming methodWhen used with a dimmable driver
class3 (Low Voltage)
cable length (mm)300
additional information
Must be wired in series

Download LDT File

Diana

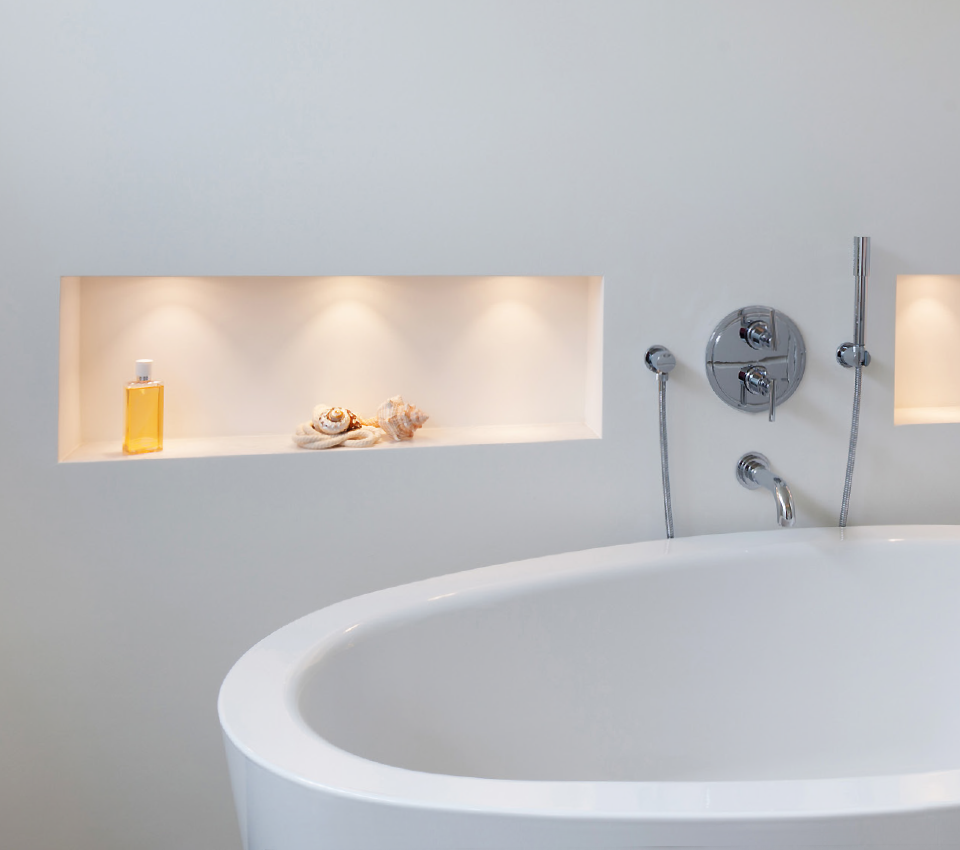

Diana is a compact IP44 1W spotlight with only a 30 degree beam angle. Disappearing into a ceiling with its matt white finish, Diana is often used over hotel bedroom doors, in care homes as a night light or in bathrooms to light niche shelf details. A range of drivers is on offer, to give you the desired control type.

Diana
