Orbit 120, White
Orbit 120, White
Orbit 120, White
Orbit 120, White

Orbit 120, White

Class 1
Class 1
Dimmable
Dimmable

Key features

Tech spec

Downloads

  • Dimmable
  • Die cast body with a sand white finish
  • Sand white ceiling can
  • Opal silicone diffuser
  • Height adjustable, min. 60cm, max. 2m
product codePE-ORB120-W
descriptionOrbit 120cm Pendant, Matt White, Dimmable
nameOrbit 120, White
item
finishSand White
main materialAluminium
overall dimensionsdia.1200 x h.40 x drop 2000mm
applicationCeiling
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP20
bathroom zonesn/a
tilt angle °n/a
adjustableHeight
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceSMD LED
lumen output (lm)3300
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °120
efficacy (lm/w)55
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)60
input power220-240V 50/60Hz
driver included?Yes
power factor0.95
switchn/a
dimmableYes
dimming methodMains
class1 (Earthed)
cable length (mm)2000
additional information
Ceiling rose dia.240 x h.46mm

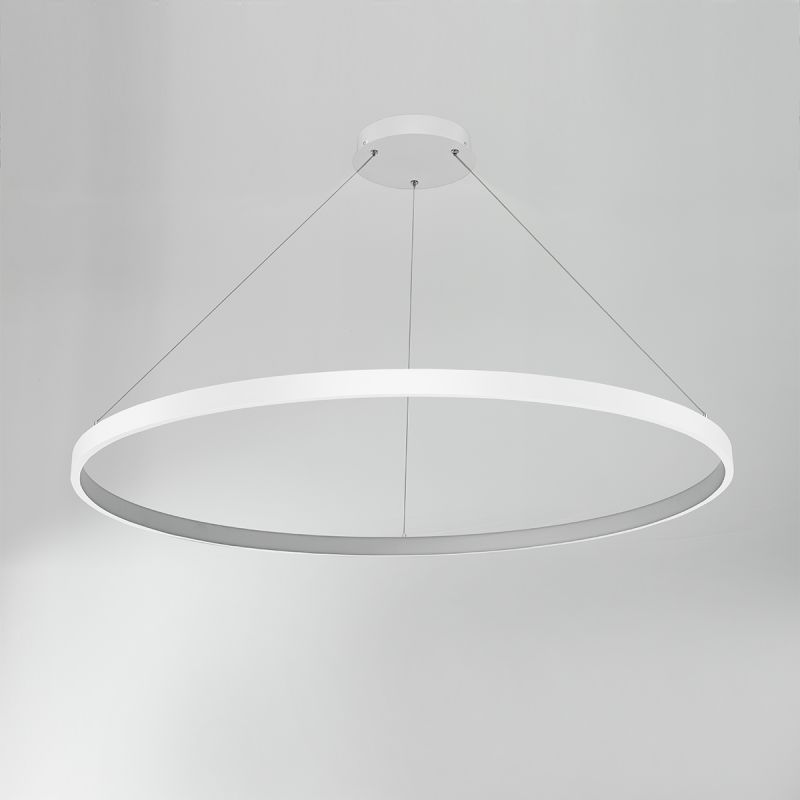

Orbit 120

Orbit 120 is an inside lit suspended ring with 120cm diameter. Available in black and white, Orbit 120 is dimmable UN comes with suspension cables allowing a 2 metre drop. suspend over a dining table, in a meeting room over a reception desk for maximum impact with minimum visual interference. For a larger pendant try Compass 2, or for more chunky large ring pendants use our Ara and Eternity ranges.
