Compass 2, Black
Compass 2, Black
Compass 2, Black
Compass 2, Black

Compass 2, Black

Class 1
Class 1
CCT 2 Colour
CCT 2 Colour

Key features

Tech spec

Downloads

  • 3000k and 4000k switchable
  • Die cast body with a sand black finish
  • Sand white ceiling can
  • Opal acrylic diffuser
  • 120° beam angle
  • Supersedes PE-COM2-B
product codePE-COM2-BS
descriptionCompass 2 Pendant, ø2m, 3000/4000K Switchable, Sand Black
nameCompass 2, Black
item
finishSand Black
main materialAluminium
overall dimensionsdia.2m x h.30mm x max. drop 3000m
applicationCeiling
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP20
bathroom zonesn/a
tilt angle °n/a
adjustableHeight
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceSMD LED
lumen output (lm)4000lm at 4000K, 3800lm at 3000K
colour temperature (cct)3000/4000k switchable
cri>80
beam angle °120
efficacy (lm/w)65
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)92
input power220-240V 50/60Hz
driver included?Yes
power factor0.95
switchn/a
dimmableNo
dimming methodn/a
class1 (Earthed)
cable length (mm)3000
additional information
4 part on-site assembly

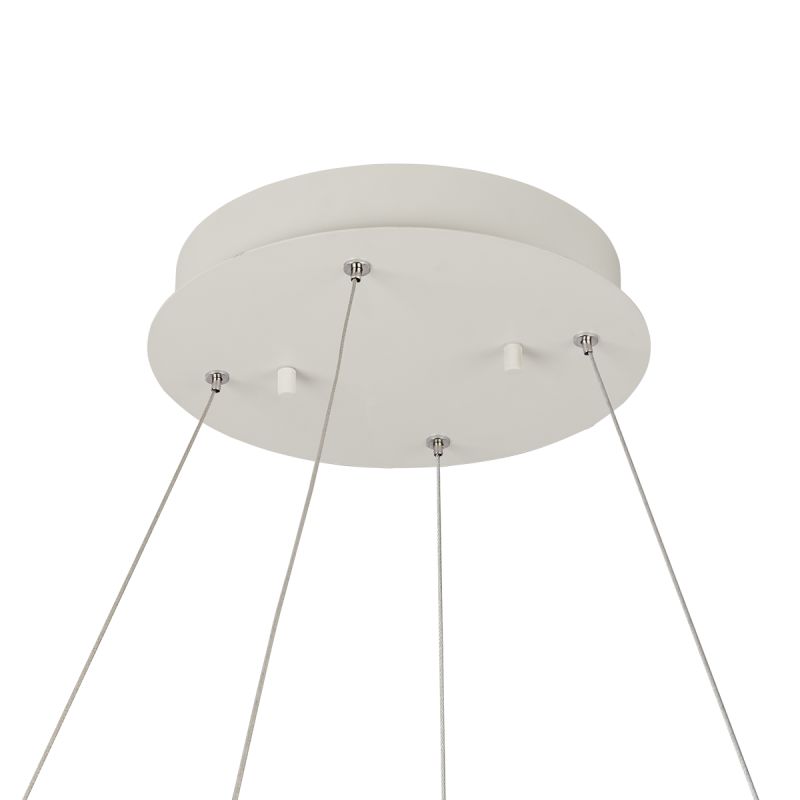

switch in ceiling can to change CCT 3000k or 4000k

Compass 2

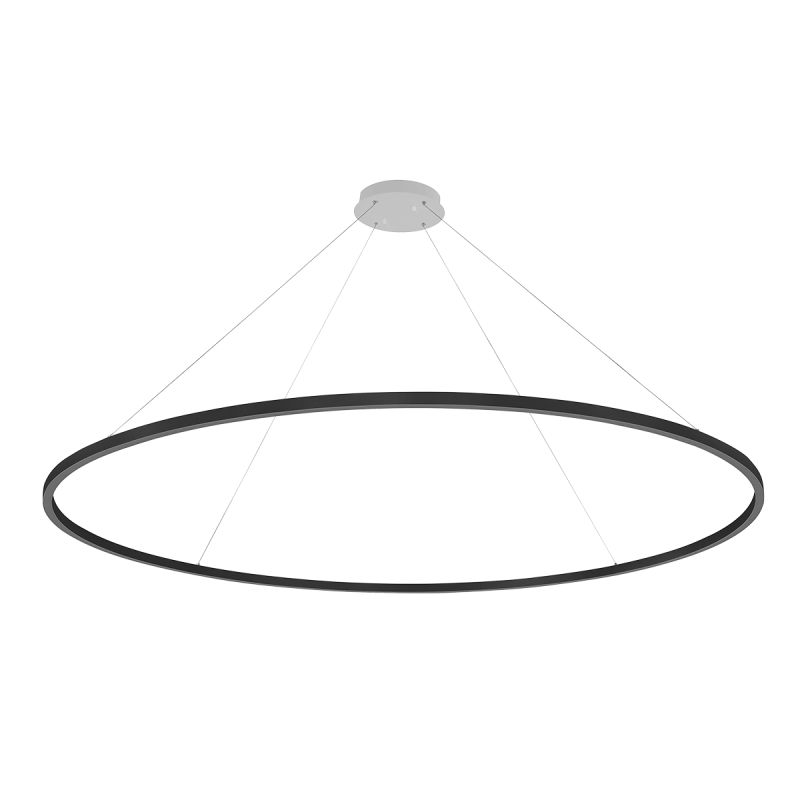

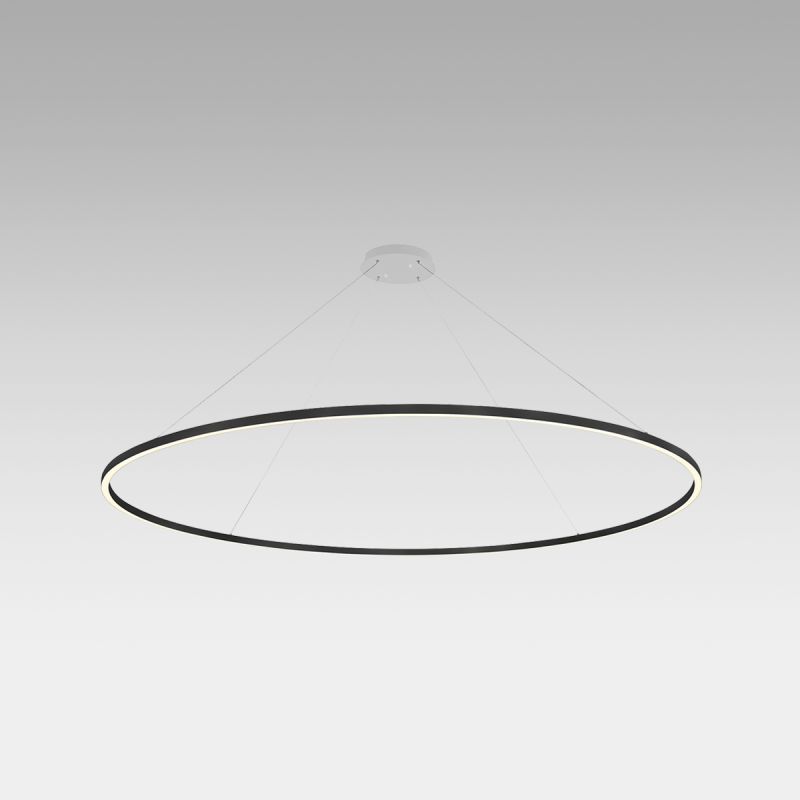

Compass 2 is an elegant, slimline ring of light that appears to float over your interior. Handily supplied in four sections and with an adjustable 3m drop, this makes for easy logistics and rapid on site assembly. Uniquely we keep this popular large scale item in stock.
