Mini Projector White
Mini Projector White

Mini Projector White

Dimmable
Dimmable
Class 3
Class 3
350mA
350mA

Key features

Tech spec

Downloads

  • Dimmable
  • Can be ceiling, wall or floor mounted
  • Aluminium with a white finish
  • 20° beam angle
  • Fittings must be wired in series
  • Driver supplied separately

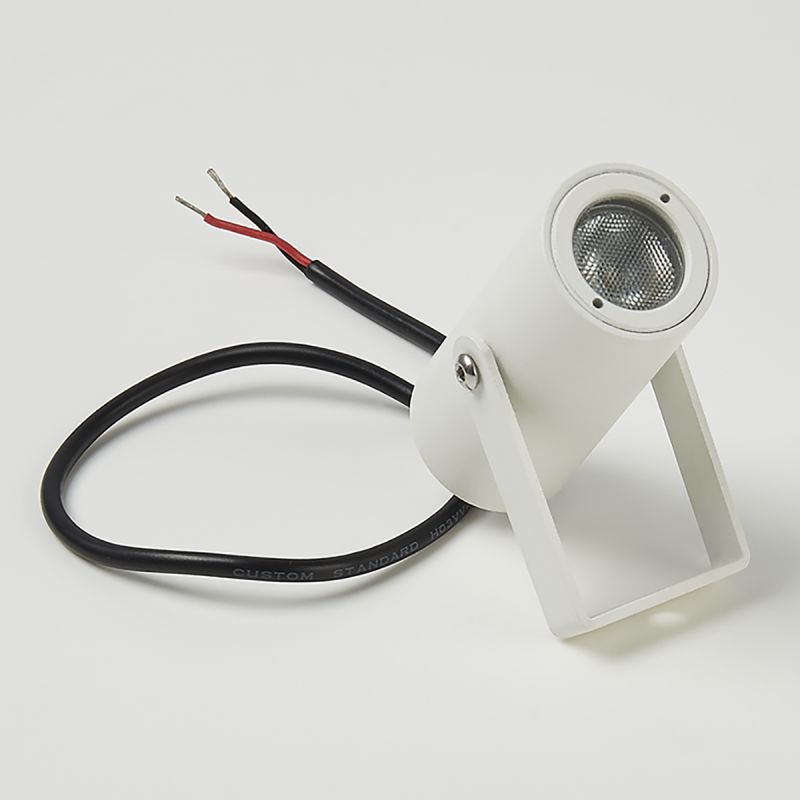

product codeLED-PROJ1W-W
descriptionMini Projector, White, 20° 1W 350mA, driver excl.
nameMini Projector White
item
finishWhite
main materialAluminium
overall dimensionsdia.60 x l.60 x h.55.5mm
applicationIndoor
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP20
bathroom zonesn/a
tilt angle °270
adjustable360° rotation, 270° pivot
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceCREE XPE
lumen output (lm)120
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °20
efficacy (lm/w)120
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)1
input power350mA
driver included?No
power factorn/a
switchn/a
dimmableYes
dimming methodWhen used with a dimmable driver
class3 (Low Voltage)
cable length (mm)300
additional information
Must be wired in series, Driver supplied separately

Mini Projector

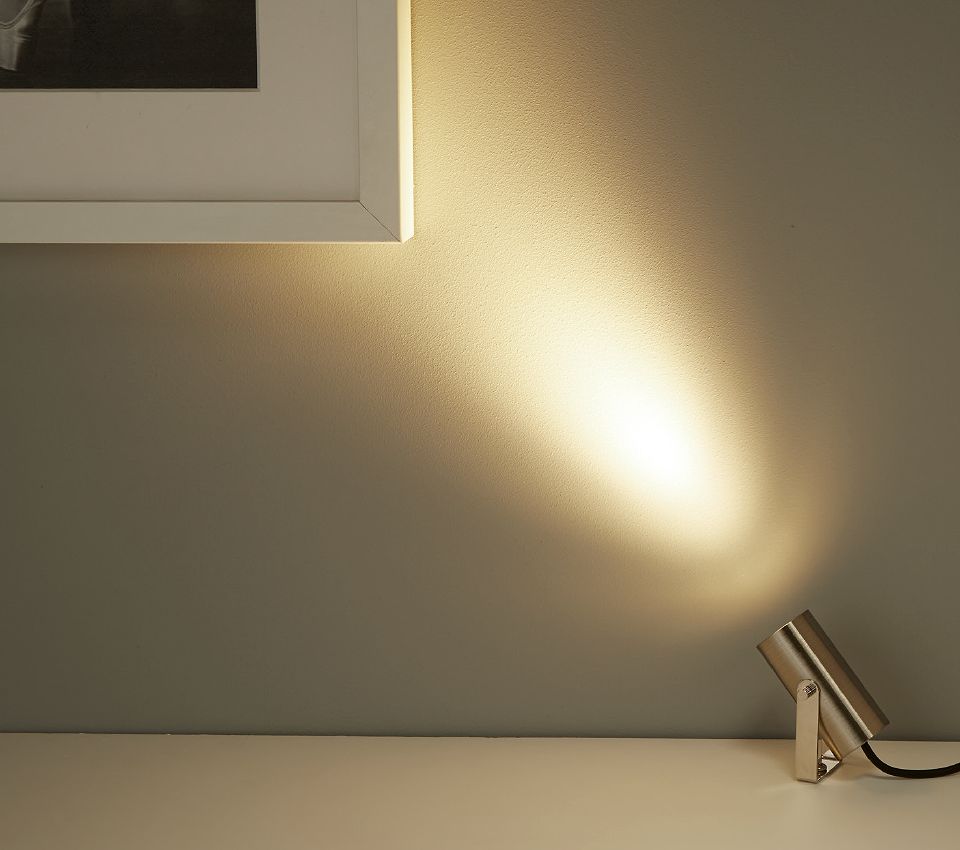

Mini Projector is designed for those applications where you need a small, adjustable light source, to put some light just where you need it. Offering 90 lumens of 3000k light on a fully adjustable bracket, Mini Projector is used in a wide range of applications from jewelley display cabinets to hotel wardrobes, grazing Grade I listed oak beams with light and spotlighting fine architectural detailing in pleasterwork. The range and number of applications is limitless. Available in black, white and satin nickel, with remote driver to suit your specific application.
