Key features

Tech spec

Downloads

  • 120 Beam Angle
  • Die cast aluminium with a graphite finish
product codeOD-BER2-G

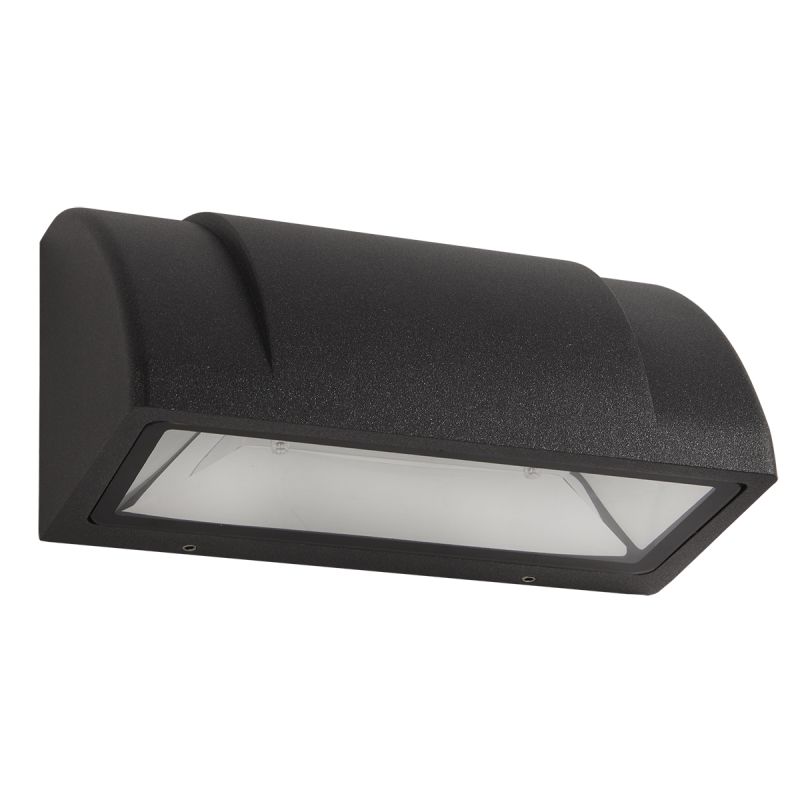

descriptionBerkeley II, 8W LED 3000k, IP54 Graphite
nameBerkeley II
item
finishGraphite
main materialAluminium
overall dimensionsh.105 x w.200 x p.93mm
applicationOutdoor wall
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP54
bathroom zonesn/a
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceOsram LED
lumen output (lm)825
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °120
efficacy (lm/w)103
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)8
input power220-240V 50/60Hz
driver included?Yes
power factor0.9
switchn/a
dimmableNo
dimming methodn/a
class1 (Earthed)
cable length (mm)n/a
additional information
Fit facing downwards

Berkeley

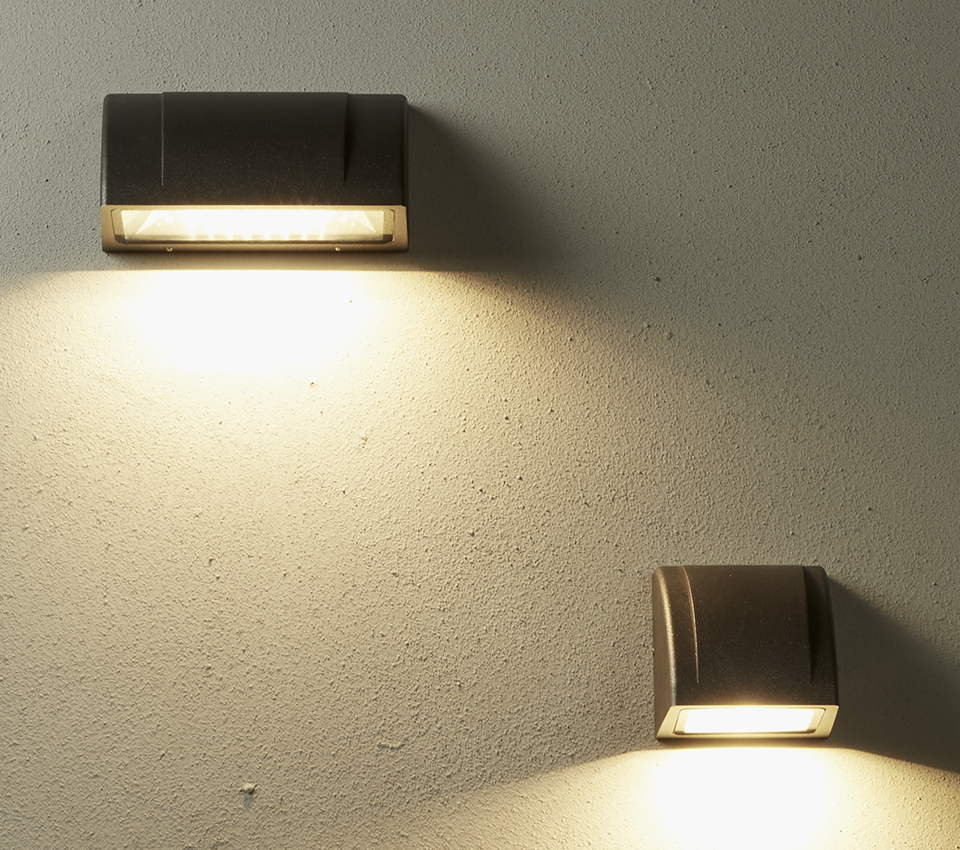

The Berkeley family of wall lights are a single direction up or down light fitting. Perfect for lighting signage and numbers on an external wall Berkeley comes in two sizes. With similar lumen output the choice is aesthetic. Berkeley I is 111mm wide, whilst Berkeley II is 200mm wide. Constructed from pure aluminium and finished in smart Graphite finish these powerful LED light sources are a great additional to commercial and residential settings alike.
