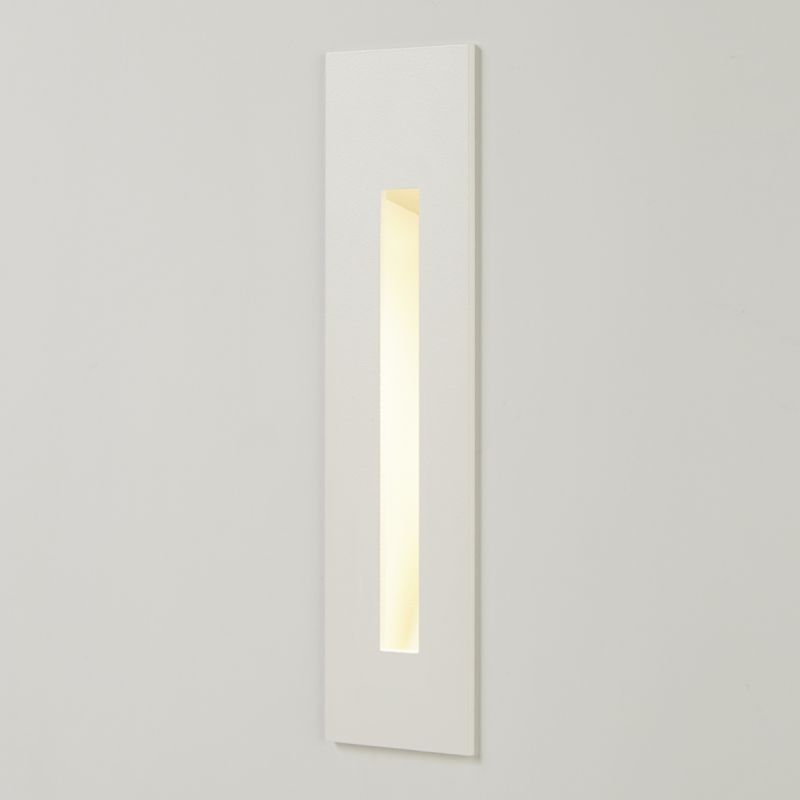

Simplon IP65 W AC 3000k
Simplon IP65 W AC 3000k

Simplon IP65 W AC 3000k

Class 1
Class 1
IP65
IP65

Key features

Tech spec

Downloads

  • Bathroom zone 1 & 2
  • Recessed
  • Aluminium with a white finish
product codeIPR-WSLW-AC
descriptionSimplon IP65, White, 1W AC 230v, non-dimmable
nameSimplon IP65 W AC 3000k
item
finishMatt White
main materialAluminium
overall dimensionsh.165 x l.55 x d.42mm
applicationRecessed Wall
cut out147 x 40mm
recess depth mm60
fire ratedNo
ip ratingIP65
bathroom zones1 & 2
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceCREE XPE
lumen output (lm)95
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °30
efficacy (lm/w)95
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)1
input power220-240V 50/60Hz
driver included?Yes
power factor0.4
switchn/a
dimmableNo
dimming methodn/a
class1 (Earthed)
cable length (mm)300
additional information
Only suitable for installation in stud walls
Replaceable LED MOD1WIP230V

Simplon IP65

Simplon is part of our ever popular range of IP65 marker lights. Most frequently fitted at ankle height these marker lights feature a 1W CREE LED light source in either 2700k or 3000k, and with the choice of remote driver or straight to mains options. Simplon casts a straight sided wedge of light onto the horizontal surface below, and is available in Matt White, Satin Nickle and Polished Chrome. For alternative shapes look at Vosges IP65, or Pyrenees IP65. Use as a night light on stairs, landings, corridors and bathrooms, or select to add architectural detail to large expanses of wall.
