skip to main content
Grid 2 White
Grid 2 White

Grid 2 White

Dimmable
Dimmable
Class 2
Class 2

Key features

Tech spec

Downloads

  • 360 rotation
  • 15 tilt
  • Dimmable
  • Die cast body with a matt painted finish
product codeDL-GRID2WW

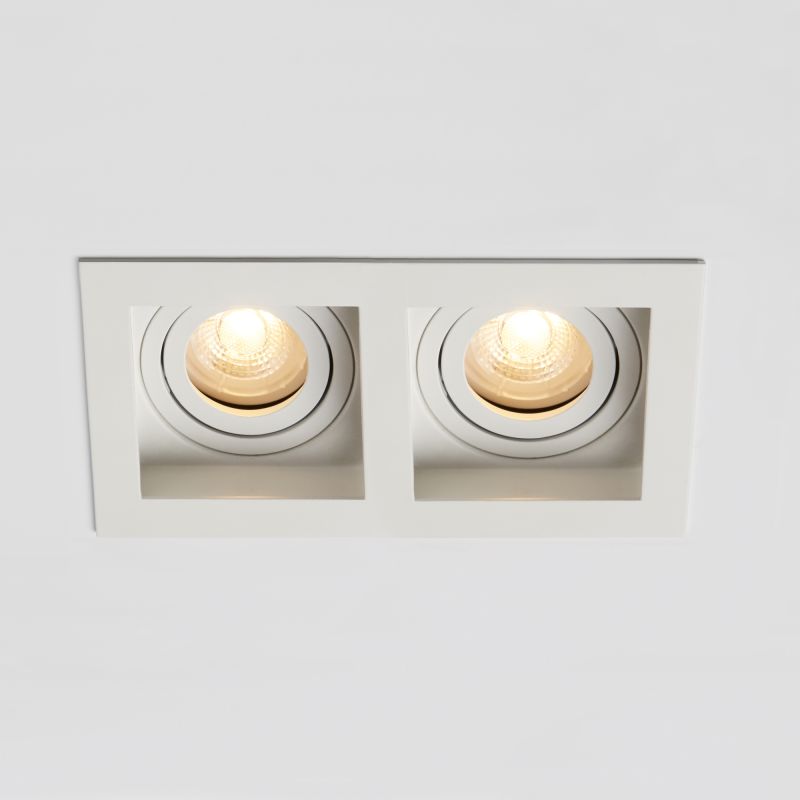

descriptionGrid 2 White/White, 2 x GU10 LED
nameGrid 2 White
item
finishMatt White
main materialAluminium
overall dimensions180 x 100 x h.40mm
applicationRecessed Ceiling
cut out171 x 92mm
recess depth mm120
fire ratedNo
ip ratingIP20
bathroom zonesn/a
tilt angle °15
adjustable360degree rotation, 15degree tilt
warranty5 years
avg hours of operationn/a
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceGU10 LED
lumen output (lm)n/a
colour temperature (cct)n/a
crin/a
beam angle °n/a
efficacy (lm/w)n/a
lamp detailGU10
lamp includedNo
electrical
maximum wattage (W)2 x 10
input power220-240V 50/60Hz
driver included?n/a
power factorn/a
switchn/a
dimmableYes
dimming methodn/a
class2 (Double Insulated)
cable length (mm)n/a
additional information

grid collection

Grid is a GU10 range available in single, double or triple, with the option of Fire Rated and in three classic colour options. The Grid series enables the lighting or interior designer to create a commercial look whilst using a smaller fitting. Ideal for modern kitchen, student accommodation, bars and restaurants. Use doubles and triples where more light is needed, or you only have as single power supply to light a wider area. With 360 degree rotation and 20 degree tilt these spotlights offer flexible recessed lighting solutions.

Grid 2
