Key features

Tech spec

Downloads

  • Dimmable
  • Fire Rated - Tested in 30, 60 and 90 minute ceilings
  • Die cast body with a matt white finish
product codePL-GRID1FR

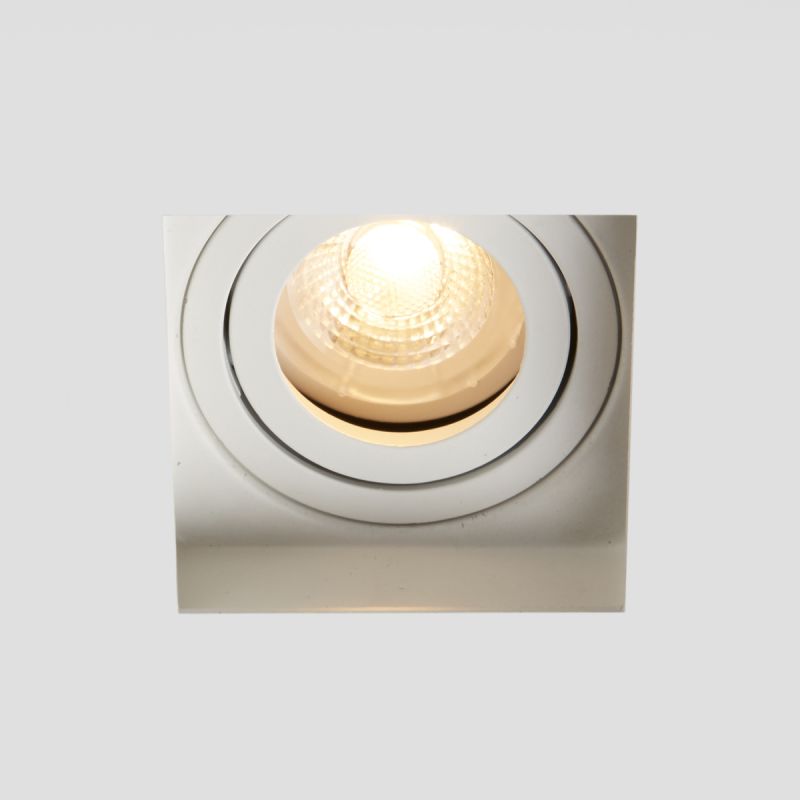

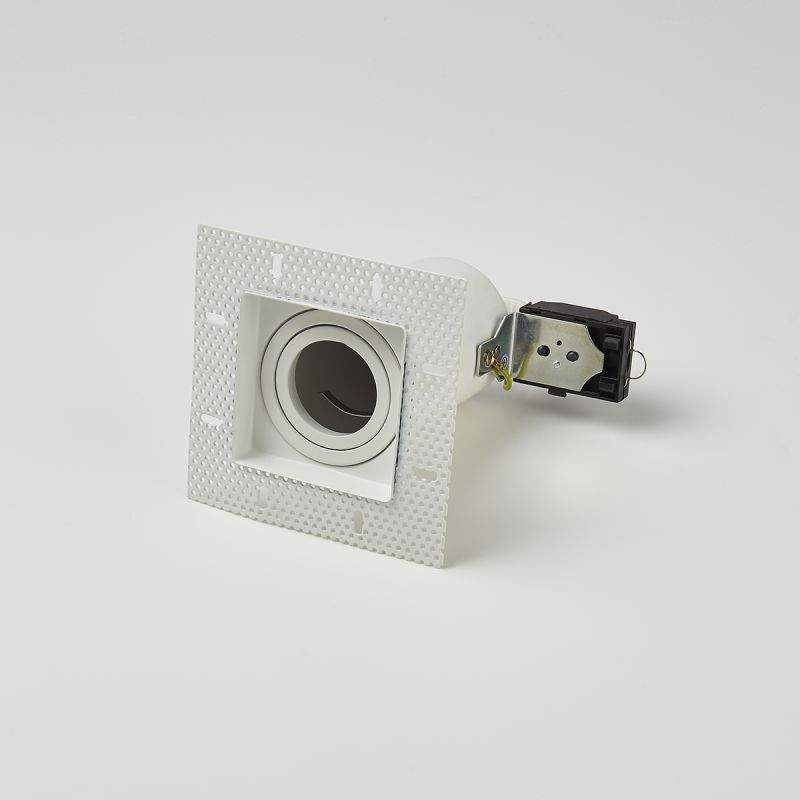

descriptionGrid 1 Trimless Fire Rated, Matt White, GU10 LED only
nameGrid 1 Trimless FR
item
finishMatt White
main materialSteel
overall dimensions125 x 125 x h.140mm
applicationRecessed Ceiling
cut out80 x 80mm
recess depth mm160
fire ratedYes
ip ratingIP20
bathroom zonesn/a
tilt angle °15
adjustable15degree tilt
warranty5 years
avg hours of operationn/a
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceGU10 LED
lumen output (lm)n/a
colour temperature (cct)n/a
crin/a
beam angle °n/a
efficacy (lm/w)n/a
lamp detailn/a
lamp includedNo
electrical
maximum wattage (W)10
input power220-240V 50/60Hz
driver included?n/a
power factorn/a
switchn/a
dimmableYes
dimming methodn/a
class1 (Earthed)
cable length (mm)n/a
additional information
Tested to BS476 part 21 in a 30, 60 and 90 minute ceiling
Plaster skim after installation
Anti-glare

Grid 1 Trimless FR

Grid 1 Trimless FR is part of the grid range of down lights. Adjustable, fire-rated and trimless this is a truly versatile fitting for use in contemporary homes, hotels and leisure settings. Have a look at our slim trimless ranges for other designs of trimless plaster-in down light. Have you already skimmed your ceiling? Look no further than our solid plaster range of down lights including the Rome and Rennes ranges.
