Chelsea Recessed AB
Chelsea Recessed AB
Chelsea Recessed AB
Chelsea Recessed AB
Chelsea Recessed AB

Chelsea Recessed AB

Class 1
Class 1
Switch
Switch

product variants

Key features

Tech spec

Downloads

  • On/Off Switch
  • Steel construction with an antique brass finish
  • 30° beam angle
product codeWL-CHER-AB

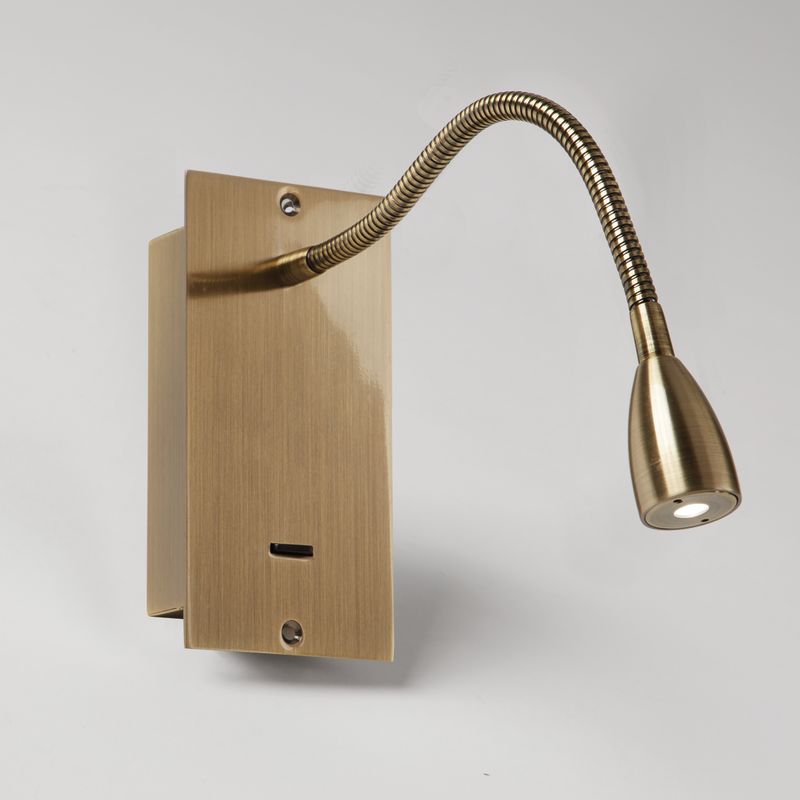

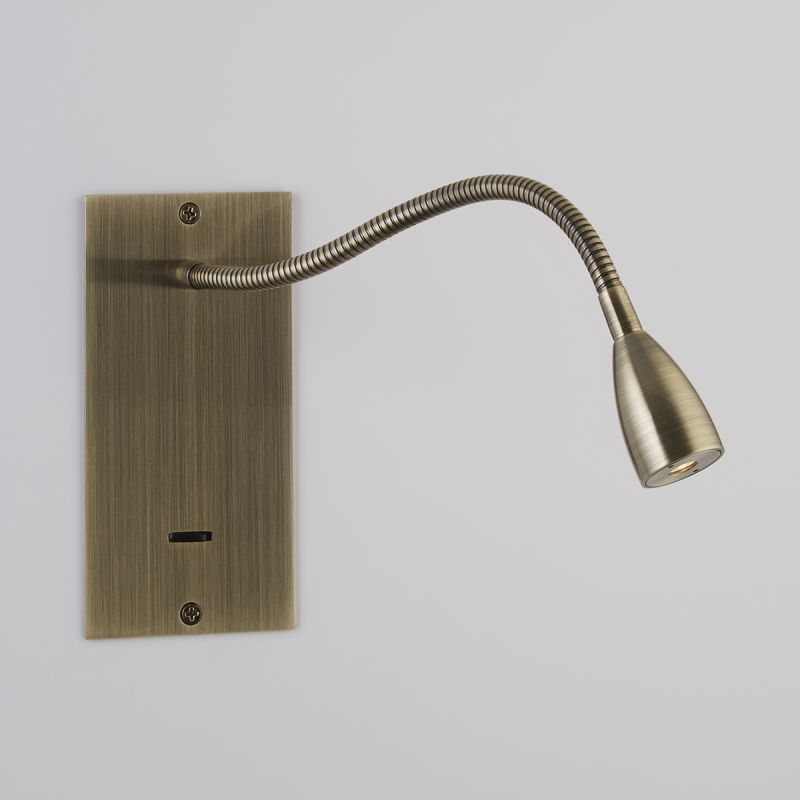

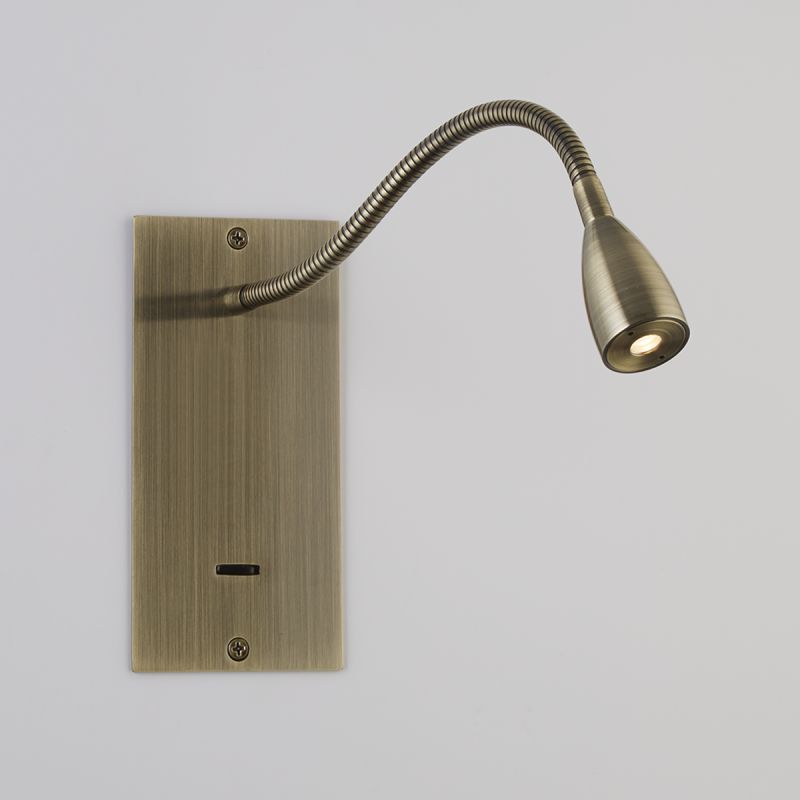

descriptionChelsea Recessed, Antique Brass
nameChelsea Recessed AB
item
finishAntique Brass
main materialSteel
overall dimensions160 x 80 x p.339mm
applicationWall
cut out132 x 67mm
recess depth mmn/a
fire ratedn/a
ip ratingIP20
bathroom zonesn/a
tilt angle °n/a
adjustableReading Arm
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceCREE XPE
lumen output (lm)90
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °30
efficacy (lm/w)90
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)1
input power220-240V 50/60Hz
driver included?Yes
power factor0.4
switchYes
dimmableNo
dimming methodn/a
class1 (Earthed)
cable length (mm)n/a
additional information
Replaceable LED module, MOD1W

Chelsea

The perfect reading light, Chelsea flexes with every turn and bend in the story. With high quality construction, including linear switch and a replaceable lead light source Chelsea is the go to choice for bedside reading light solutions. Try Victoria for a tubular solution. Both Chelsea and Victoria are available in surface mounted and recessed versions.

Chelsea Recessed
